美国HITEC-SAI Mod11048多维力传感器

  • 分类:多维/拉扭复合传感器
    型号:
    品牌:
    浏览:
    专线:400-877-3100


  • 立即订购400-877-3100
  • 产品详情

  • 联系我们

SDI拉扭复合传感器设计用于同时测量扭矩(Mz)和推力(Fz)的双分量传感器,并提供两个单独的输出。
传感器可以进行串扰补偿,消除了离轴加载效应。
该传感器的坚固结构和元件设计使其能够承受显着的外力(见无关载荷方程)。
提供各种量程和尺寸。
具体请咨询我们的应用工程师

Capacities ........................
500 in-lbs (Mz) / 500 lbs (Fz)
 2500 in-lbs (Mz) / 5000 lbs (Fz)
 2500 in-lbs (Mz) / 2500 lbs (Fz)
 4000 in-lbs (Mz) / 4000 lbs (Fz)
 10000 in-lbs (Mz) / 20000 lbs (Fz)
Overload capacity........................  150% F.S. both axes
Output at full scale load.....................  2.0 mV/V nominal
Non-linearity.............................................  0.10% of F.S.
Hysteresis...................................................  0.10% of F.S.
Zero balance...............................................  +/-1% of F.S.
Compensated temperature..........................  70 to 170°F
Useable temperature.................................  -65 to +250°F
Temperature effect on zero.................  0.002% of F.S./°F
Temperature effect on span.............  0.002% of Rdg./°F
Bridge resistance....................................  700/350 Ohms
Excitation voltage, maximum..............................  20 Vdc
Material........................................................  Alloy steel

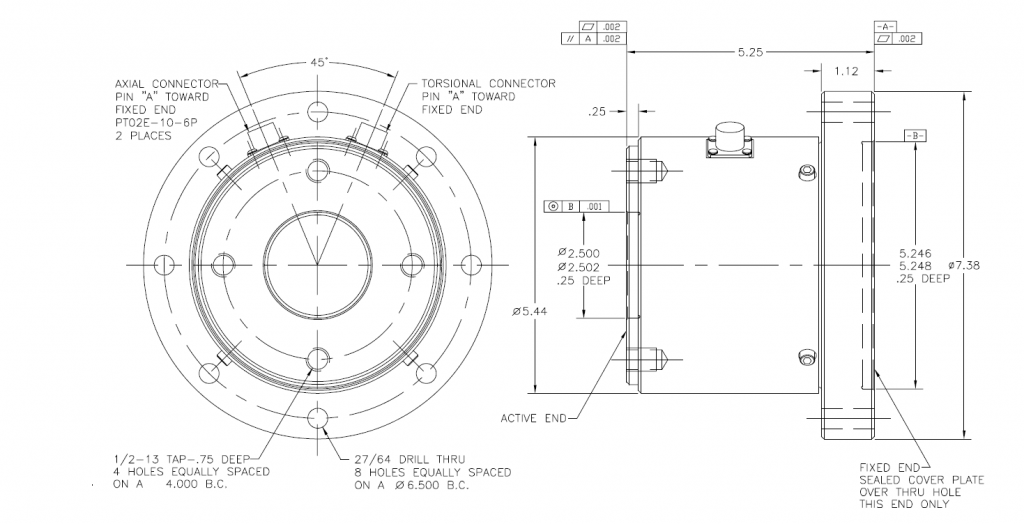

尺寸图纸
